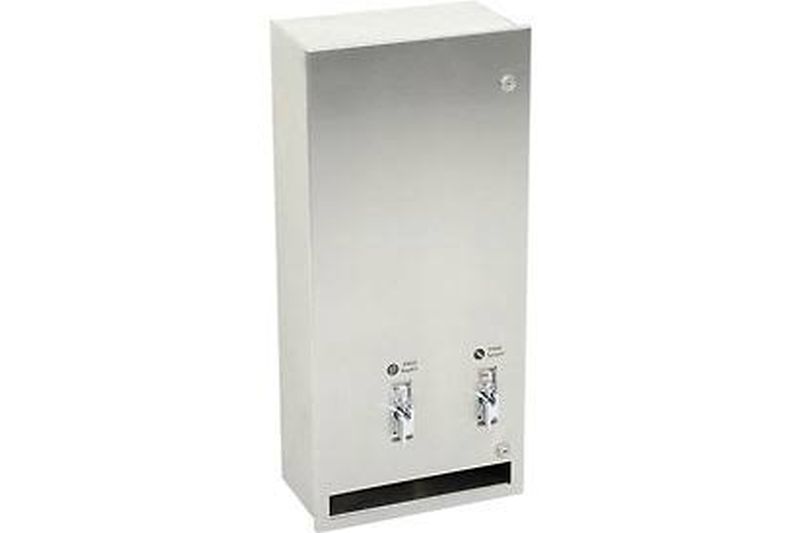

ASI 0864 – Tampon Dispenser – Surface Mounted

Description

ASI 0864 Tampon Dispenser | Feminine Hygiene Vendors – Surface Mounted



• Surface Mounted Dual Sanitary Napkin & Tampon Dispenser shall hold 30 napkins and 27 tampons of specified sizes.
• Door shall be 18 gauge type 304 stainless steel alloy 18-8. All exposed surfaces shall be satin finish and be protected during shipment with PVC film easily removable after installation.
• Cabinet and adjustable trim flange shall be 22 gauge same grade stainless steel.
• Door shall be attached with a full length 3/16″ diameter (Ø4.8) stainless steel multi-staked piano hinge and shall be held closed with two (2) tumbler locks keyed alike to other ASI washroom equipment.
• Internal coin-box shall be keyed differently than door locks. Dispensing mechanisms shall be fastener mounted internally to provide ability to change mechanisms for coinage denomination.
• Structural assembly of body and door components shall be of welded construction and have no exposed fasteners or welded seams.
• ASI 0864 | Bobrick B-282 Bradley 426



---

Features:

• 18 guage, 18-8 Type 304 Stainless Steel, No 4 satin finish
• Surface Mounted



	Capacity		Fee Operation
	30 Napkins and 27 Tampons		Free
	30 Napkins and 27 Tampons		$0.25 cents
	30 Napkins and 27 Tampons		$0.50 cents



---

Specifications:

---
